2966278 | Phoenix Contact

Interface relay 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 6 A, 24 V (DC), 2966278

Order No.: 30G9616
EAN: 4017918131029
MPN:
2966278
PLC-RSC-24UC/21AU
Series: PLC

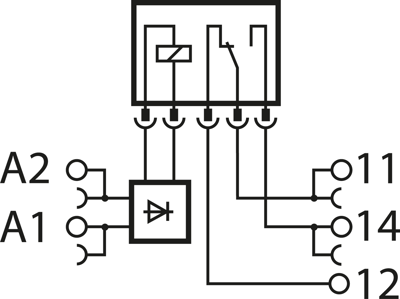

2966278 Phoenix Contact Coupling Relays Image 1

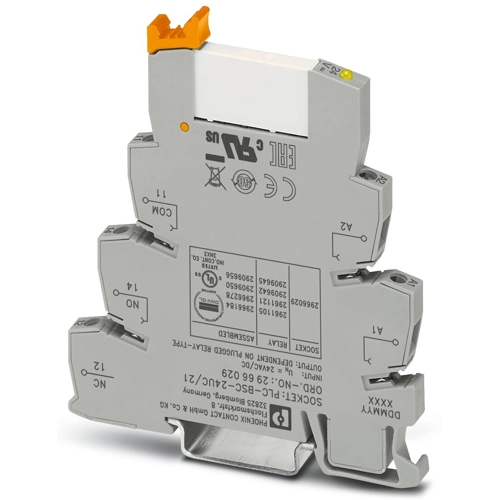

2966278 Phoenix Contact Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
22.5386 € *
Available in 10 days: 1,165 pcs. - if ordered today
Total Price:
22.54 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5386 €
10 pcs.
20.9678 €
25 pcs.
19.0757 €
50 pcs.
17.1717 €
*incl. VAT plus shipping costs
Subject to prior sale

Relay module, 2966278, Phoenix Contact

Relay module, 2966278, Phoenix Contact

PLC-INTERFACE, consisting of PLC-BSC/21 basic terminal block with screw connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7.5, 1 changeover contact, Input voltage 24 V AC/DC.

Features

  • Slim design
  • Efficient connection to system cabling using V8 adapter
  • Functional plug-in bridges
  • Integrated input circuit and interference suppression circuit
Technical specifications
Filter Property Value
Coil voltage (DC) 24 V
Rated current 6 A
Degree of protection (IP) IP20
Coil voltage (AC) 24 V
Connection screw connection
Status display LED, yellow
Contact type 1 Form C (NO/NC)
Rated voltage (DC) 24 V
Contact material AgSnO, gold-plated
Product type interface relay
Logistics
Property Value
Country of origin DE
Customs tariff number 85364190
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
