2966184 | Phoenix Contact

Interface relay 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 6 A, 24 V (DC), 24 V (AC), 2966184

Order No.: 30G9604
EAN: 4017918130725
MPN:
2966184
PLC-RSC-24UC/21
Series: PLC

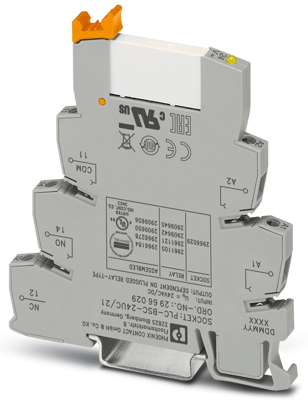

2966184 Phoenix Contact Coupling Relays Image 1

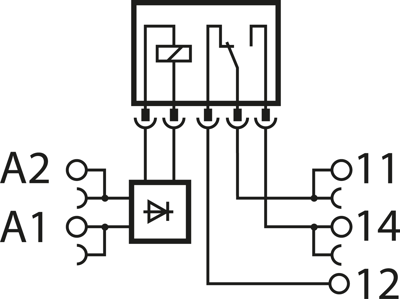

2966184 Phoenix Contact Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
21.5152 € *
Available in 10 days: 4,657 pcs. - if ordered today
Total Price:
21.52 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5152 €
10 pcs.
20.0039 €
25 pcs.
18.2070 €
50 pcs.
16.3863 €
*incl. VAT plus shipping costs
Subject to prior sale

Relay module, 2966184, Phoenix Contact

Relay module, 2966184, Phoenix Contact

PLC-INTERFACE, consisting of basic terminal block PLC-BSC/21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 changeover contact, Input voltage 24 V AC/DC.

Features

  • Slim design
  • Efficient connection to system cabling using V8 adapter
  • Functional plug-in bridges
  • Integrated input circuit and interference suppression circuit
Technical specifications
Filter Property Value
Coil voltage (DC) 24 V
Rated current 6 A
Degree of protection (IP) IP20
Rated voltage (AC) 24 V
Coil voltage (AC) 24 V
Connection screw connection
Status display LED, yellow
Contact type 1 Form C (NO/NC)
Rated voltage (DC) 24 V
Contact material AgSnO
Product type interface relay
Logistics
Property Value
Country of origin DE
Customs tariff number 85364190
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
