2966126 | Phoenix Contact
Interface relay 1 Form C (NO/NC), 48 V (DC), 5.22 kΩ, 6 A, 250 V (DC), 250 V (AC), 2966126
Unit Price (€ / pc.)
20.5156 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
20.52 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5156 €
10 pcs.
19.1233 €
25 pcs.
17.9095 €
50 pcs.
16.8385 €
*incl. VAT plus shipping costs
Subject to prior sale

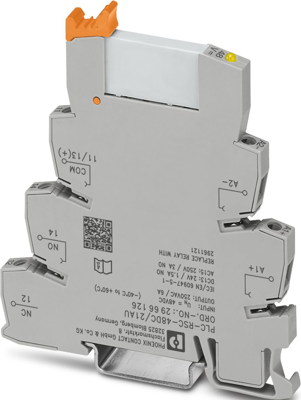

Interface relay module, 2966126, Phoenix Contact
PLC-INTERFACE, consisting of PLC-BSC/21 basic terminal block with screw connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage 48 V DC.
Features
- Slim design
- Efficient connection to system cabling using V8 adapter
- RT III sealed relay
- Safe isolation between coil and contact side
- Functional plug-in bridges
- Integrated input circuit and interference suppression circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 250 V | |
| Status display | LED, yellow | |
| Contact material | AgSnO, gold-plated | |
| Coil type | monostable | |
| Product type | relay coupler | |
| Rated current | 6 A | |
| Coil voltage (DC) | 48 V | |
| Coil resistance | 5.22 kΩ | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Contact type | 1 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
