2900304 | Phoenix Contact
Interface relay 1 Form C (NO/NC), 120 V (AC), 34.29 kΩ, 6 A, 250 V (DC), 250 V (AC), 2900304
Unit Price (€ / pc.)
21.2177 € *
Available in 5 Days: 9,774 pcs. - if ordered today
Total Price:
21.22 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2177 €
10 pcs.
19.8968 €
25 pcs.
18.7306 €
50 pcs.
17.6834 €
*incl. VAT plus shipping costs
Subject to prior sale

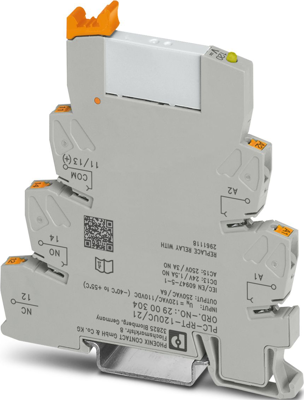

Interface relay module, 2900304, Phoenix Contact
PLC-INTERFACE, consisting of PLC-BPT/21 basic terminal block with Push-in connection and plug-in miniature relay with power contact, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage 120 V AC/110 V DC.
Features
- Slim design
- Efficient connection to system cabling using V8 adapter
- RT III sealed relay
- Safe isolation between coil and contact side
- Functional plug-in bridges
- Integrated input circuit and interference suppression circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 34.29 kΩ | |
| Degree of protection (IP) | IP20 | |
| Connection | push-in | |
| Coil voltage (AC) | 120 V | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 6 A | |
| Rated voltage (AC) | 250 V | |
| Product type | relay coupler | |
| Contact material | AgSnO | |
| Coil type | monostable | |
| Rated voltage (DC) | 250 V | |
| Status display | LED, yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
