1401690 | Phoenix Contact
PUR master cable ring SACB 11 x 0.5/1.0 mm², unshielded, black, 1401690
Unit Price (€ / pc.)
645.3727 € *
Standard delivery time from the manufacturer is: 2 Weeks

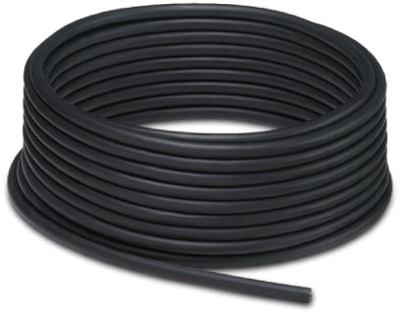

Master cable ring, 1401690, Phoenix Contact
Master cable ring, Application: distributor boxes, Number of positions: 11, Cable Length: 50 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 2 kV | |
| Cable cross-section | 0.5/1.0 mm² | |
| Outer diameter | 9.4 mm | |
| Version | master cable ring | |
| Material | PUR | |
| Temperature range (active) | -5 °C to 80 °C | |
| Number of cores | 11 | |
| Rated voltage | 300 V | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
