1853528 | Phoenix Contact

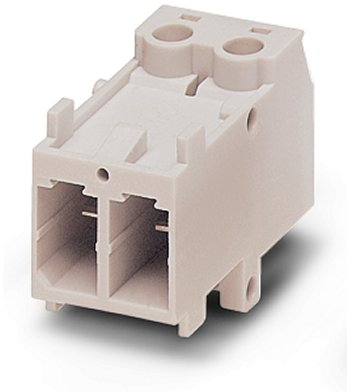

Pin contact insert, 2 pole, equipped, screw connection, 1853528

Order No.: 62P4832
EAN: 4017918127060
MPN:
1853528
VC-AMS 2
Series: VC-AMS
1853528 Phoenix Contact Contact Inserts
Image may differ
Unit Price (€ / pc.)
5.5692 € *
Available: 47 pcs.
Available in 10 days: 269 pcs. - if ordered today
Total Price:
5.57 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5692 €
10 pcs.
5.1289 €
50 pcs.
4.6648 €
100 pcs.
4.2007 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert module, 1853528, Phoenix Contact

Contact insert, Housing material: Polyamide, Color: light gray, Number of positions: 2, Min. conductor cross section: 0.25 mm², Max. conductor cross section: 4 mm², Rated voltage: 400, Rated current: 20 A, Connection method: Screw connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.

Features

  • Compact design
  • Universal connection
  • Proven COMBICON technology
  • Can be keyed to prevent incorrect connection
Technical specifications
Pin number 2 pole
PE contact No
Contact connection screw connection
Version pin insert
Additional parts equipped
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
