1853476 | Phoenix Contact
Socket contact insert, 6 pole, equipped, screw connection, 1853476
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: On Request

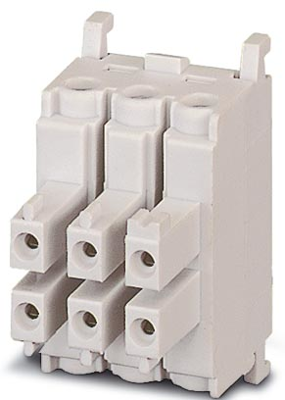

Contact insert module, 1853476, Phoenix Contact
Contact insert, Housing material: Polyamide, Color: light gray, Number of positions: 6, Min. conductor cross section: 0.14 mm², Max. conductor cross section: 1.5 mm², Rated voltage: 250, Rated current: 10 A, Connection method: Screw connection, Type of contact: Socket. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 6 pole | |
| PE contact | No | |
| Contact connection | screw connection | |
| Version | socket insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
