1607751 | Phoenix Contact
Pin contact insert, VC4, 7 pole, equipped, screw connection, with PE contact, 1607751
Order No.: 62P4838
EAN: 4017918969219
MPN:
1607751
VC-AMS 7
Unit Price (€ / pc.)
22.9908 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
22.99 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9908 €
10 pcs.
20.6941 €
100 pcs.
17.5882 €
*incl. VAT plus shipping costs
**Subject to prior sale

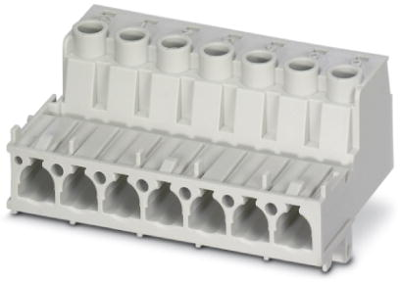

Contact insert module, 1607751, Phoenix Contact
Contact insert, Type: VC4, Housing material: PA, Color: light gray, Number of positions: 7, Min. conductor cross section: 0.5 mm², Max. conductor cross section: 16 mm², Rated voltage: 690 V, Rated current: 70 A, Connection method: Screw connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | VC4 | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 7 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
