1607748 | Phoenix Contact
Pin contact insert, VC3, 5 pole, equipped, screw connection, with PE contact, 1607748
Unit Price (€ / pc.)
18.3617 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.36 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3617 €
10 pcs.
16.8980 €
50 pcs.
15.3748 €
100 pcs.
13.8397 €
*incl. VAT plus shipping costs
Subject to prior sale

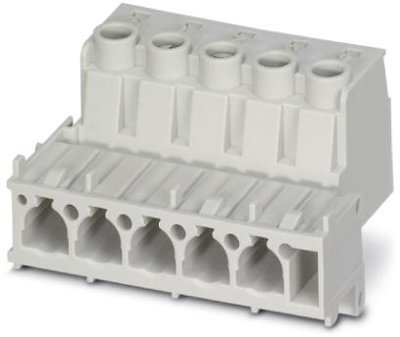

Contact insert module, 1607748, Phoenix Contact
Contact insert, Type: VC3, Housing material: PA, Color: light gray, Number of positions: 5, Min. conductor cross section: 0.5 mm², Max. conductor cross section: 16 mm², Rated voltage: 690 V, Rated current: 70 A, Connection method: Screw connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| PE contact | Yes | |
| Additional parts | equipped | |
| Shell size | VC3 | |
| Version | pin insert | |
| Contact connection | screw connection | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
