1607745 | Phoenix Contact

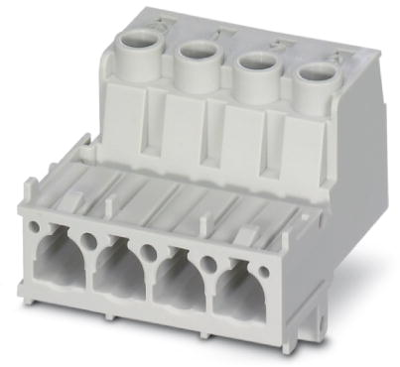

Pin contact insert, VC2, 4 pole, equipped, screw connection, with PE contact, 1607745
Unit Price (€ / pc.)
15.1725 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15.17 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1725 €
10 pcs.
13.9587 €
50 pcs.
12.6973 €
100 pcs.
11.4359 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert module, 1607745, Phoenix Contact
Contact insert, Type: VC2, Housing material: PA 6. 6, Color: light gray, Number of positions: 4, Min. conductor cross section: 0.5 mm², Max. conductor cross section: 16 mm², Rated voltage: 690 V, Rated current: 70 A, Connection method: Screw connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Additional parts | equipped | |
| PE contact | Yes | |
| Version | pin insert | |
| Shell size | VC2 | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
