1607418 | Phoenix Contact

Pin contact insert, VC3, 32 pole, equipped, screw connection, with PE contact, 1607418

Order No.: 62P4857
EAN: 4017918941130
MPN:
1607418
VC-AR3/4M-S8888-SET
Series: VC-AR
1607418 Phoenix Contact Contact Inserts

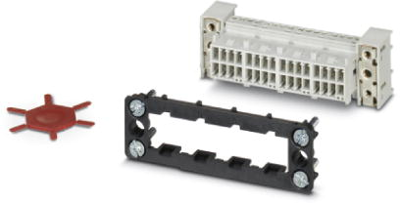

Image may differ
Unit Price (€ / pc.)
35.8904 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
35.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
35.8904 €

Contact insert module, 1607418, Phoenix Contact

Contact insert set, Type: VC3, Housing material: PA, Number of positions: 32, Min. conductor cross section: 0.14 mm², Max. conductor cross section: 1.5 mm², Rated voltage: 160, Rated current: 10 A, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.

Features

  • Compact design
  • Universal connection
  • Proven COMBICON technology
  • Can be keyed to prevent incorrect connection
Technical specifications
PE contact Yes
Contact connection screw connection
Shell size VC3
Pin number 32 pole
Version pin insert
Additional parts equipped
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
