1423825 | Phoenix Contact
Pin contact insert, 16B, 16 pole, equipped, push-in, with PE contact, 1423825
Unit Price (€ / pc.)
33.5223 € *
Available in 10 days: 36 pcs. - if ordered today

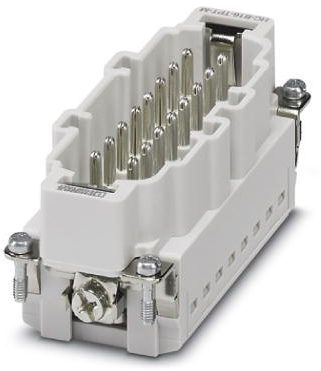

Contact insert module, 1423825, Phoenix Contact
Contact insert, Number of positions: 16+PE, Size: B16, Number of connections per position: 2, Pin, Push-in connection, 500 V, 16 A, 0.25-1.5 mm², Application: Power
Features
- Easy installation without tools, even when mounted, with push-in connection technology
- Quick and effortless wiring, in particular when space is tight
- Automatic cabling with robots possible
- Safe wiring and operation with color-coded actuators
- Cost-effective and fast coding with plastic profiles
- Double conductor connection per pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 16 pole | |
| PE contact | Yes | |
| Contact connection | push-in | |
| Version | pin insert | |
| Shell size | 16B | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
