1571333 | Phoenix Contact
Plug, 1 pole, threaded connection, straight, 1571333
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
23.4430 € *
Available in 5 Days: 672 pcs. - if ordered today
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
21.5390 €
25 pcs.
19.6350 €
50 pcs.
17.8500 €
*incl. VAT plus shipping costs
Subject to prior sale

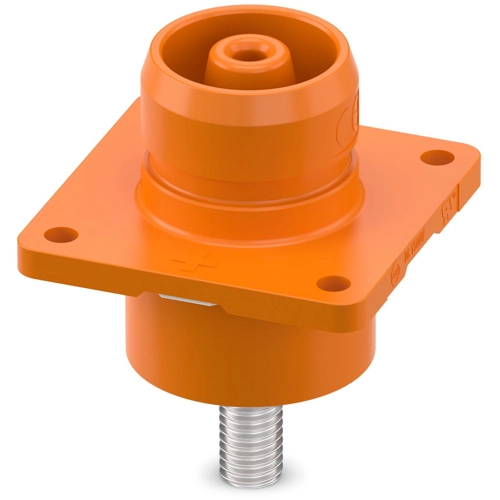

Connector, 1571333, Phoenix Contact
Connector, color: orange, number of positions: 1, min. conductor cross section: 95 mm², max. conductor cross section: 120 mm², rated voltage: 1500, rated current: 350 A, Connection method: Thread connection, Contact connection type: Pin.
Features
- Patented design, with 3 proofs and one rotation
- Safety lock
- 360° free rotation and flexible wiring
- Foolproof mechanism installed
- Touch-proof
- Mismatching and short circuit proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Rated Voltage | 1500 VDC | |
| Rated current | 350 A | |
| Cable cross-section | 95-120 mm² | |
| Pin number | 1 pole | |
| Colour | orange | |
| Connection | threaded connection | |
| Degree of protection (IP) | IP20/IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
