1571285 | Phoenix Contact
Connector, 1 pole, threaded connection, straight, 1571285
Unit Price (€ / pc.)
12.4950 € *
Next delivery: 15 pcs. on 2025-10-28
Available in 5 Days: 520 pcs. - if ordered today
Total Price:
12.50 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4950 €
10 pcs.
11.9238 €
50 pcs.
11.3883 €
100 pcs.
10.7576 €
*incl. VAT plus shipping costs
Subject to prior sale

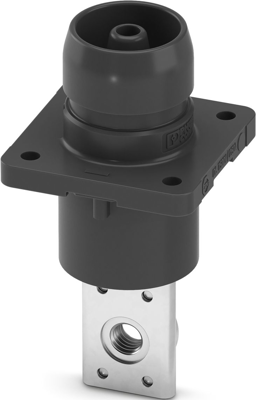

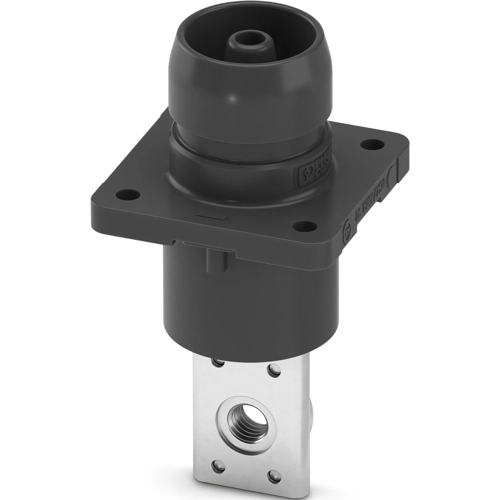

Connector, 1571285, Phoenix Contact
Connector, Range of articles: BPC 250, color: black, number of positions: 1, rated voltage: 1500 V DC, rated current: 200 A, Connection method: Thread connection.
Features
- Patented design, with 3 proofs and one rotation
- Safety lock
- 360° free rotation and flexible wiring
- Foolproof mechanism installed
- Touch-proof
- Mismatching and short circuit proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP65/IP67 | |
| Rated Voltage | 1500 VDC/1000 VAC | |
| Product type | connector | |
| Rated current | 200 A | |
| Connection | threaded connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
