1231073 | Phoenix Contact

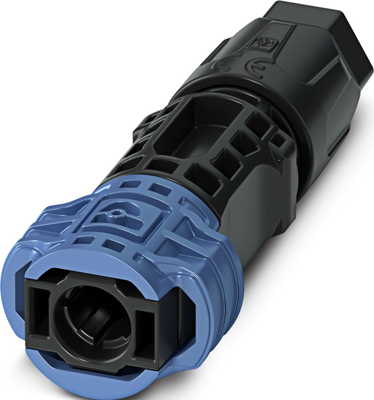

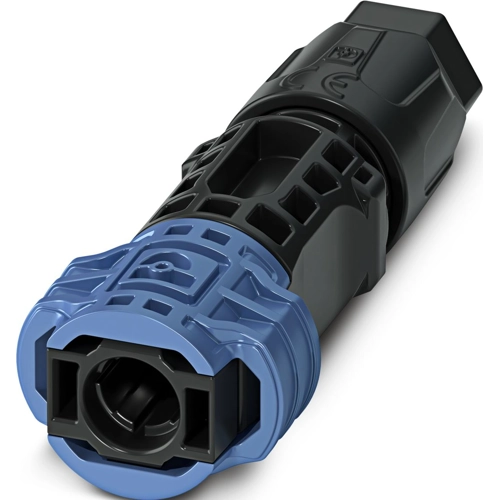

Connector, 1 pole, crimp connection, straight, 1231073
Unit Price (€ / pc.)
2.1182 € *
Available in 5 Days: 103 pcs. - if ordered today
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
10 pcs.
1.9873 €
50 pcs.
1.9278 €
100 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, 1231073, Phoenix Contact
Connector, Range of articles: BPP, color: blue/black, number of positions: 1, min. conductor cross-section: 2.5 mm², max. conductor cross-section: 6 mm², rated voltage: 1500 V, rated current: 38 A, Connection method: Crimp, min. cable diameter: 5 mm, max. cable diameter: 8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue/black | |
| Cable diameter | 5 to 8 mm | |
| Cable cross-section | 2.5-6 mm² | |
| Rated current | 38 A | |
| Rated Voltage | 1500 V | |
| Degree of protection (IP) | IP66/IP68 | |
| Pin number | 1 pole | |
| Product type | connector | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
