1703823 | Phoenix Contact

Plug part, 7 pole, pitch 10.16 mm, 0.75-16 mm², AWG 18-6, straight, 76 A, 1000 V, screw connection, 1703823

Order No.: 62P6253
EAN: 4017918994662
MPN:
1703823
DFK-IPC 16/ 7-STF-10,16
Series: DFK
1703823 Phoenix Contact Connecting Blocks

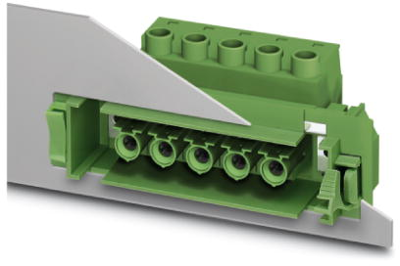

Image may differ
Unit Price (€ / pc.)
23.0741 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.0741 €

Feed-through plug, 1703823, Phoenix Contact

Feed-through connector, nominal cross section: 16 mm², color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Socket, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: DFK-IPC 16/.-STF, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PC 16, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method: Screw flange, type of packaging: packed in cardboard.

Features

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Flange system enables secure fixing to the housing panel by means of tool-free snap-in locking or screws
  • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
  • Shroud for professional EMC shield connection on the front of the device
  • Screwable flange for superior mechanical stability
Technical specifications
Pin number 7 pole
Cable cross-section 0.75-16 mm²
Rated voltage 1000 V
Design straight
Version socket
AWG cross-section AWG 18-6
Contact connection screw connection
Grid 10.16 mm
Rated current 76 A
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
