2904577 | Phoenix Contact
Patch panel, RJ45 socket, (W x H x D) 56 x 90 x 51 mm, green, 2904577
Unit Price (€ / pc.)
194.4817 € *
Available in 5 Days: 237 pcs. - if ordered today

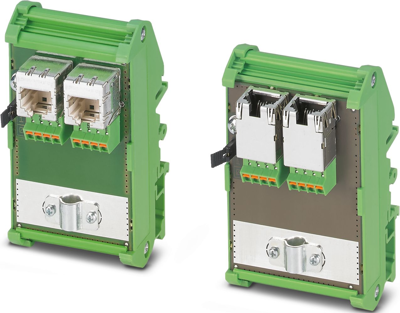

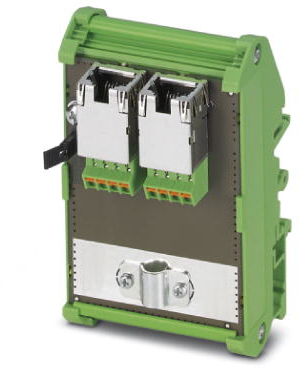

Patch panel, 2904577, Phoenix Contact
Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the top) to 8 spring-cage connection terminal blocks, CAT5e, 10/100 Mbps, DIN rail mounting, IP20, Option of shield contacting on DIN rail via jumpers
Features
- Safe shield connection to ground potential
- Mounting on a DIN rail
- Cable sharing adapter
- Easy use of one cable for various services
- Optional shield connection via jumpers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 51 mm | |
| Connection | RJ45 socket | |
| Height | 90 mm | |
| Width | 56 mm | |
| Colour | green | |
| Version | patch panel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
