2702864 | Phoenix Contact
Communication module for Axioline F station, Inputs: 2, Outputs: 2, DALI, (W x H x D) 35 x 126.1 x 54 mm, 2702864
Unit Price (€ / pc.)
721.4732 € *
Available in 5 Days: 111 pcs. - if ordered today

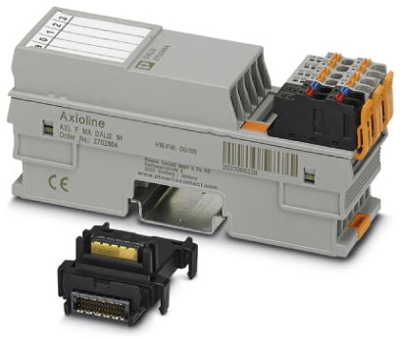

Communication module, 2702864, Phoenix Contact
Axioline F, DALI master, Single client, two channels, integrated DALI power supply unit, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.
Features
- DALI master with integrated DALI bus supply
- Suitable for single master operation
- Electrical isolation of the DALI bus
- DALI bus protected against unintentional connection of mains voltage (up to 250 VAC)
- Device rating plate stored
- Certified in accordance with DALI-2 standard (single client)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | communication module | |
| Suitable for | Axioline F station | |
| Interfaces | DALI | |
| Number of inputs | 2 | |
| Number of outputs | 2 | |
| Assembly | DIN rail | |
| Width | 35 mm | |
| Height | 126.1 mm | |
| Depth | 54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
