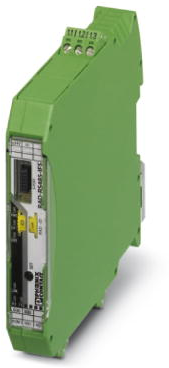

2702184 | Phoenix Contact

Communication module, Outputs: 1, RS-485, (W x H x D) 17.5 x 113 x 114.5 mm, 2702184

Order No.: 64P6975
EAN: 4055626007373
MPN:
2702184
RAD-RS485-IFS
Series: RAD
2702184 Phoenix Contact Communication modules
Image may differ
Unit Price (€ / pc.)
592.3463 € *
Available in 10 days: 40 pcs. - if ordered today
Total Price:
592.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
592.3463 €

Communication module, 2702184, Phoenix Contact

Radioline - RS-485 multipoint multiplexer, can be extended with I/O modules, can be used as Modbus/RTU bus coupler or can be combined with Radioline wireless system, up to 99 stations, range of up to 1.2 km on in-house copper cables.

Features

  • Multipoint multiplexer for I/O signals
  • Quick and easy startup without programming
  • Can be combined with Radioline wireless modules
  • Modular extension with up to 32 I/O extension modules supported
  • Extended temperature range of -40 °C to +70 °C
  • Approved for use in zone 2
Technical specifications
Filter Property Value
Number of outputs 1
Interfaces RS-485
Assembly DIN rail
Version communication module
Width 17.5 mm
Depth 114.5 mm
Height 113 mm
Logistics
Property Value
Customs tariff number 85176200
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
