2701524 | Phoenix Contact

Decentralized I/O device for EtherCAT, Inputs: 4, Outputs: 8, 100 Mbit/s, EtherCAT, (W x H x D) 60 x 185 x 30.5 mm, 2701524

Order No.: 64P8366
EAN: 4046356763745
MPN:
2701524
AXL E EC IOL8 DI4 M12 6P
Series: AXIOLINE E
2701524 Phoenix Contact Communication modules

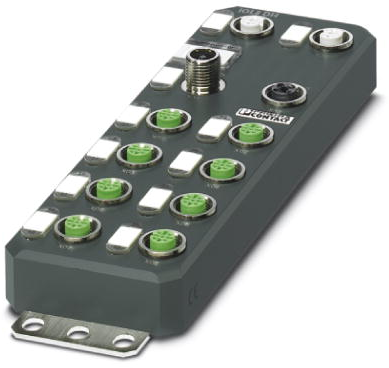

Image may differ
Unit Price (€ / pc.)
586.9556 € *
Available in 10 days: 57 pcs. - if ordered today
Total Price:
586.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
586.9556 €

Communication module, 2701524, Phoenix Contact

Axioline E, EtherCAT, M12 fast connection technology, IO-Link ports Class A: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, IO-Link ports Class B: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, Digital inputs at pin 2 for class A ports: 4, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Connection to EtherCAT network using M12 connectors (D-coded)
  • Transmission speed of 100 Mbps
  • Connection of four IO-Link devices with additional digital input
  • Connection of four IO-Link actuators with additional power supply
  • Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
  • IO-Link specification V1.1.2
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Assembly wall mounting
Number of inputs 4
Version communication module
Number of outputs 8
Data transmission rate 100000000 mb/s
Height 185 mm
Suitable for EtherCAT
Interfaces EtherCAT
Width 60 mm
Depth 30.5 mm
Logistics
Property Value
Customs tariff number 85176200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
