2701513 | Phoenix Contact
Decentralized I/O device for PROFINET, Inputs: 4, Outputs: 8, 100 Mbit/s, PROFINET, (W x H x D) 60 x 185 x 30.5 mm, 2701513
Unit Price (€ / pc.)
586.9556 € *
Standard delivery time from the manufacturer is: On Request

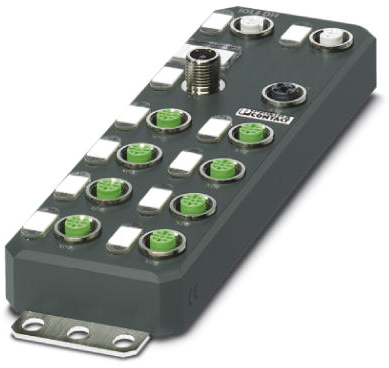

Communication module, 2701513, Phoenix Contact
Axioline E, PROFINET, M12 fast connection technology, IO-Link ports Class A: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, IO-Link ports Class B: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, Digital inputs at pin 2 for class A ports: 4, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.
Features
- Transmission speed of 100 Mbps
- Connection of four IO-Link actuators with additional power supply
- IO-Link specification V1.1.2
- Diagnostic and status indicators
- Short-circuit and overload protection of the sensor supply
- IP65/IP67 degree of protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | communication module | |
| Suitable for | PROFINET | |
| Data transmission rate | 100000000 mb/s | |
| Interfaces | PROFINET | |
| Number of inputs | 4 | |
| Number of outputs | 8 | |
| Assembly | wall mounting | |
| Width | 60 mm | |
| Height | 185 mm | |
| Depth | 30.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
