2701503 | Phoenix Contact

Decentralized I/O device for profibus, Inputs: 4, Outputs: 8, 12 Mbit/s, profibus, (W x H x D) 60 x 185 x 30.5 mm, 2701503

Order No.: 64P8409
EAN: 4046356763554
MPN:
2701503
AXL E PB IOL8 DI4 M12 6P
Series: AXIOLINE E
2701503 Phoenix Contact Communication modules

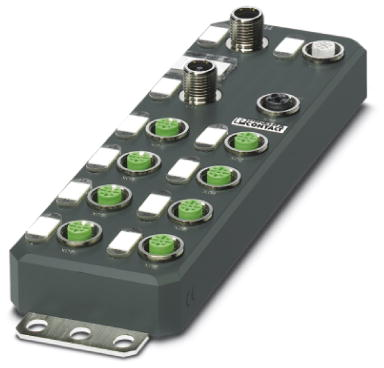

Image may differ
Unit Price (€ / pc.)
520.03 € *
Available in 10 days: 41 pcs. - if ordered today
Total Price:
520.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
520.03 €

Communication module, 2701503, Phoenix Contact

Axioline E, PROFIBUS DP, M12 fast connection technology, IO-Link ports Class A: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, IO-Link ports Class B: 4, Digital inputs at pin 2 for class A ports: 4, 24 VDC, Plastic housing, degree of protection: IP65/IP67.

Features

  • Baud rate of up to 12 Mbaud (automatic baud rate detection)
  • Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
  • IO-Link specification V1.1.2
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
  • IP65/IP67 degree of protection
Technical specifications
Filter Property Value
Assembly wall mounting
Number of inputs 4
Version communication module
Number of outputs 8
Data transmission rate 12000000 mb/s
Height 185 mm
Suitable for profibus
Interfaces profibus
Width 60 mm
Depth 30.5 mm
Logistics
Property Value
Customs tariff number 85176200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
