2701496 | Phoenix Contact

Decentralized I/O device for ethernet/IP, Inputs: 4, Outputs: 8, 100 Mbit/s, ethernet, (W x H x D) 60 x 185 x 30.5 mm, 2701496

Order No.: 64P8376
EAN: 4046356763509
MPN:
2701496
AXL E EIP IOL8 DI4 M12 6P
Series: AXIOLINE E
2701496 Phoenix Contact Communication modules
Image may differ
Unit Price (€ / pc.)
586.9556 € *
Available in 10 days: 280 pcs. - if ordered today
Total Price:
586.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
586.9556 €

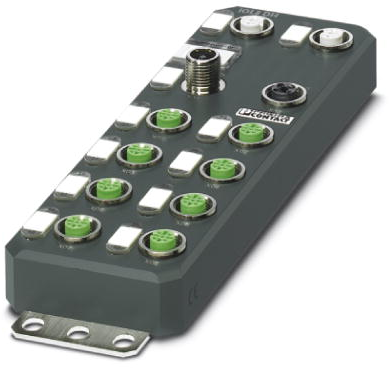

Communication module, 2701496, Phoenix Contact

Axioline E, EtherNet/IP, M12 fast connection technology, IO-Link ports Class A: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, IO-Link ports Class B: 4, Connection method: M12 fast connection technology, Connection technology: 3-conductor, Digital inputs at pin 2 for class A ports: 4, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Transmission speed of 10 Mbps and 100 Mbps
  • IO-Link specification V1.1.2
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Filter Property Value
Height 185 mm
Width 60 mm
Depth 30.5 mm
Number of inputs 4
Version communication module
Number of outputs 8
Data transmission rate 100000000 mb/s
Suitable for ethernet/IP
Assembly wall mounting
Interfaces ethernet
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
