2909906 | Phoenix Contact
Device circuit breaker, electronic, 1 pole, 24 A, 24 V, DIN rail, 2909906
Unit Price (€ / pc.)
50.6345 € *
Available in 5 Days: 634 pcs. - if ordered today
Electronic circuit breaker, 2909906, PHOENIX CO

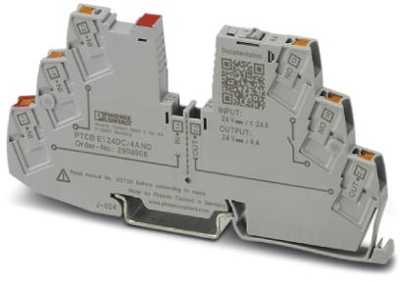

The 2909906 is a single-channel electronic circuit breaker for protecting loads against overload and short circuit. it is simple potential distribution using components from the clipline to complete terminal block system.
Features
- More space in the control cabinet: narrowest protection on just 6 mm width
- Individual setup for suitable protection, exactly according to your requirements
- RoHS compatible
- Protection class III
- Tripping method E (electronic)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 24 V | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 | |
| Product type | device circuit breaker | |
| Version | electronic | |
| Pin number | 1 pole | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
