3240803 | Phoenix Contact
Cable tie, PA, (L x W) 200 x 4.8 mm, bundle-Ø 2 to 50 mm, transparent, -40 to 85 °C, 3240803
Unit Price (€ / pc.)
0.2261 € *
Available in 10 days: 1,718 pcs. - if ordered today

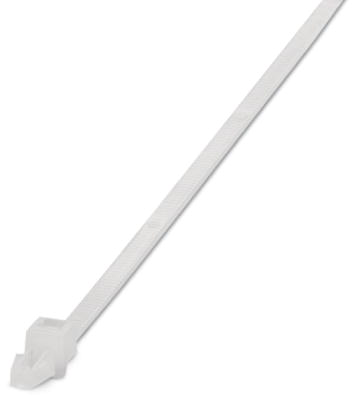

Cable tie, 3240803, Phoenix Contact
The 3240803 is a cable tie for direct mounting with optimum head shape for high tensile forces. This product offers space saving thanks to molded body-bound rivet.
Features- Easy to plug in
- Optimum hold in standard drill hole
- Halogen free
- Silicone free
Technical specifications
| Width | 4.8 mm | |
| min. operating temperature | -40 °C | |
| Min holding force | 220 N | |
| min. Bundle diameter | 2 mm | |
| detachable closure | No | |
| Thickness | 3 mm | |
| Product type | cable tie | |
| Material | PA | |
| UV-resistant | No | |
| Length | 200 mm | |
| Colour | transparent | |
| max. operating temperature | 85 °C | |
| max. Bundle diameter | 50 mm | |
| Halogen free | Yes |
Download
Logistics
| Customs tariff number | 39269097 |
| Country of origin | IT |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
