3240786 | Phoenix Contact
Cable tie, PA, (L x W) 200 x 4.8 mm, bundle-Ø 3 to 50 mm, transparent, -40 to 125 °C, 3240786
Unit Price (€ / pc.)
0.1630 € *
Available in 5 Days: 27,400 pcs. - if ordered today

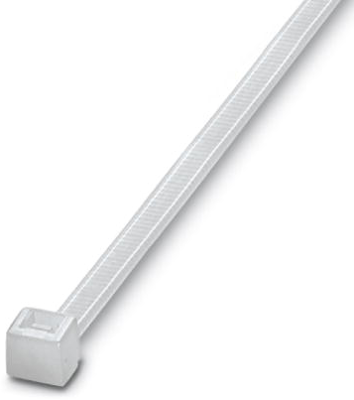

Cable tie, 3240786, Phoenix Contact
The 3240786 is a cable tie that is specially designed for high temperature applications. This product has a special head shape for high tensile forces.
Features- Easy to use thanks to its optimized geometries
- Halogen free
- Silicone free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | transparent | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Material | PA | |
| detachable closure | No | |
| max. Bundle diameter | 50 mm | |
| Min holding force | 220 N | |
| Width | 4.8 mm | |
| Length | 200 mm | |
| min. Bundle diameter | 3 mm | |
| Product type | cable tie |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | HR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
