3240770 | Phoenix Contact

Cable tie, PA, (L x W) 430 x 4.8 mm, bundle-Ø 3.5 to 115 mm, transparent, -40 to 85 °C, 3240770

Order No.: 61P3329
EAN: 4046356704885
MPN:
3240770
WT-HF 4,5X430
Series: WT
3240770 Phoenix Contact Cable Ties
Image may differ
Unit Price (€ / pc.)
0.3046 € *
Available in 10 days: 2,600 pcs. - if ordered today
Total Price:
30.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
0.3046 €

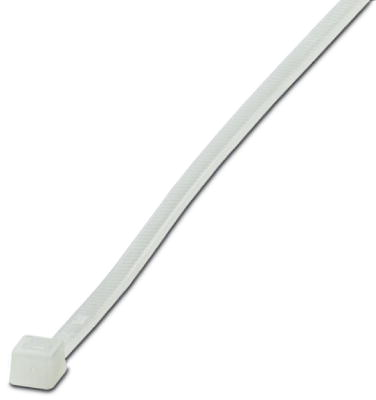

Cable tie, 3240770, Phoenix Contact

The 3240770 is a cable tie suitable for bundling and fastening conductors and cables. This product can be used indoors and outdoors even under unfavorable industrial conditions and it is easy to use thanks to its optimized geometries.

Features
  • Easily tightened and cut off flush in one step
  • Optimum head shape for high tensile forces
  • Halogen free
  • Silicone free
Technical specifications
Filter Property Value
Material PA
Colour transparent
Length 430 mm
Product type cable tie
Halogen free Yes
detachable closure No
min. operating temperature -40 °C
UV-resistant No
max. Bundle diameter 115 mm
Min holding force 220 N
min. Bundle diameter 3.5 mm
Width 4.8 mm
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 39269097
Country of origin IT
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
