3240730 | Phoenix Contact
Cable tie, PA, (L x W) 850 x 12.6 mm, bundle-Ø 30 to 143 mm, transparent, -40 to 85 °C, 3240730
Unit Price (€ / pc.)
1.6541 € *
Available in 10 days: 3,400 pcs. - if ordered today

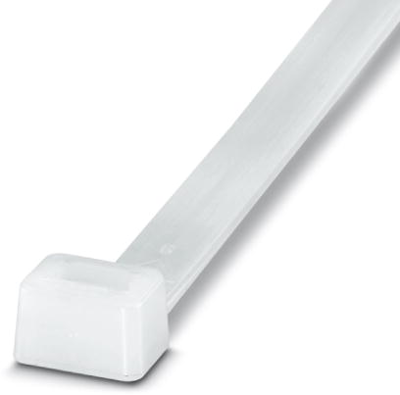

Cable tie, 3240730, Phoenix Contact
The 3240730 is a cable tie suitable for bundling and fastening conductors and cables. This product can be used indoors and outdoors even under unfavorable industrial conditions and it is easy to use thanks to its optimized geometries.
Features- Easily tightened and cut off flush in one step
- Optimum head shape for high tensile forces
- Halogen free
- Silicone free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Colour | transparent | |
| Length | 850 mm | |
| Product type | cable tie | |
| Halogen free | Yes | |
| detachable closure | No | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| max. Bundle diameter | 143 mm | |
| Min holding force | 1080 N | |
| min. Bundle diameter | 30 mm | |
| Width | 12.6 mm | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
