1044243 | Phoenix Contact

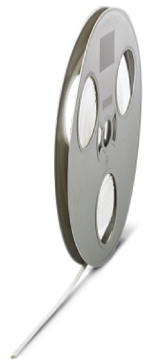

PE marking tube, inscribable, (L x W) 30000 x 9 mm, white, 1044243
Unit Price (€ / pc.)
84.0021 € *
Available in 10 days: 3 pcs. - if ordered today
Marking hose WMS-OT HF 4,8 (EX9)R
Marking hose, Rolle, White, Unlabeled, can be labeled with: THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK W: without Imprint, unperforated, Mounting type: postpone, Cable diameterbereich: 1,6 - 4,8 mm, Title block size: 9 x 30000 mm
The technical characteristics of 1044243 from Phoenix Contact at a glance
- Mounting type : Insertion
- Length : 30000 mm
- Width : 9 mm
- Color : White
- Text field available : Yes
- Material : Polyolefin
- Article description : WMS-OT HF 4,8 (EX9)R
- Imprint : without
- max. Core diameter : 4.8 mm
- max. diameter of the cable : 4.8 mm
- min. Core diameter : 1.6 mm
- min. Cable diameter : 1.6 mm
Further links to Phoenix Contact 1044243
You can find more information about Phoenix Contact under the following links 1044243
Technical specifications
| Material | PE | |
| Markable | Yes | |
| Colour | white | |
| Version | marking tube | |
| Length | 30000 mm | |
| Width | 9 mm |
Download
Logistics
| Customs tariff number | 39173200 |
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
