1013562 | Phoenix Contact
Plastic cable maker, inscribable, (L x W) 10 x 5.5 mm, white, 1013562
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7378 € *
Standard delivery time from the manufacturer is: 4 Weeks

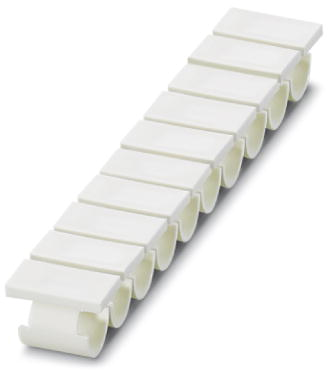

Conductor marking sleeve LBHZ 3/WH:UNBEDRUCKT
Conductor marking sleeve, Strip, White, Unmarked, Markable with: CMS-P1-PLOTTER, Mounting type: slide on, Cable diameter range: 2,5 - 4,7 mm, Lettering field size: 5.5 x 10 mm
The technical characteristics of 1013562 from Phoenix Contact at a glance
- Article description : LBHZ 3/WH:UNBEDRUCKT
- Imprint : without
- Version : Card shape
- Material : Plastic
- Text field available : Yes
- Mounting type : Insertion
- Length : 10 mm
- Color : White
- Width : 5.5 mm
- min. Cable diameter : 2.5 mm
- min. Core diameter : 2.5 mm
- max. diameter of the cable : 4.7 mm
- max. Core diameter : 4.7 mm
Further links to Phoenix Contact 1013562
You can find more information about Phoenix Contact under the following links 1013562
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cable maker | |
| Material | plastic | |
| Length | 10 mm | |
| Width | 5.5 mm | |
| Colour | white | |
| Markable | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
