3241184 | Phoenix Contact

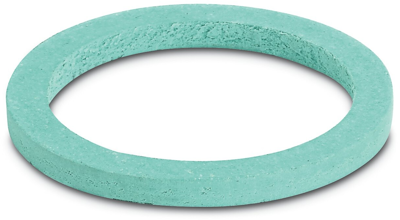

Flat seal, PG21, (W x H) 34 x 2.5 mm, centellen, green, for IP68, 3241184

Order No.: 61P2973
EAN: 4046356785907
MPN:
3241184
WP-FS HF IP68 PG21
Series: WP-FS HF IP68
3241184 Phoenix Contact Cable Management Accessories
Image may differ
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7021 €

Flat seal WP-FS HF IP68 PG21

Flat seal, height: 2.5 mm, diameter: 34 mm, color: green.

The technical characteristics of 3241184 from Phoenix Contact at glance

  • Inner diameter : 27 mm
  • Outer diameter : 34 mm
  • Article description : WP-FS HF IP68 PG21
  • Material : Centellen
  • Suitable for thread size (PG) : No
  • Suitable for thread size (NPT) : No
  • min. Thickness : 2.5 mm
  • Suitable for thread size (metric) : Pg21

Further links to Phoenix Contact 3241184

You can find more information about Phoenix Contact under the following links 3241184

Technical specifications
Colour green
Material centellen
Product type flat seal
Version PG21
min. operating temperature -50 °C
Height 2.5 mm
Suitable for IP68
Width 34 mm
max. operating temperature 200 °C
Logistics
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
