3241182 | Phoenix Contact

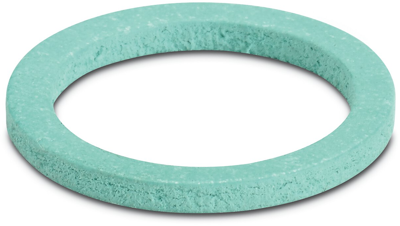

Flat seal, PG11, (W x H) 22.5 x 2 mm, centellen, green, for IP68, 3241182
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 3 Weeks
Flat seal WP-FS HF IP68 PG11
Flat seal, height: 2 mm, diameter: 22.5 mm, color: green.
The technical characteristics of 3241182 from Phoenix Contact at glance
- Inner diameter : 18.5 mm
- Outer diameter : 22.5 mm
- Article description : WP-FS HF IP68 PG11
- Material : Centellen
- Suitable for thread size (PG) : No
- Suitable for thread size (NPT) : No
- min. Thickness : 2 mm
- Suitable for thread size (metric) : Pg11
Further links to Phoenix Contact 3241182
You can find more information about Phoenix Contact under the following links 3241182
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 2 mm | |
| Colour | green | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 200 °C | |
| Version | PG11 | |
| Material | centellen | |
| Width | 22.5 mm | |
| Suitable for | IP68 | |
| Product type | flat seal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
