3241178 | Phoenix Contact

Flat seal, M32, (W x H) 44 x 2.2 mm, centellen, green, for IP68, 3241178

Order No.: 61P2969
EAN: 4046356785846
MPN:
3241178
WP-FS HF IP68 M32
Series: WP-FS HF IP68
3241178 Phoenix Contact Cable Management Accessories
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7497 €

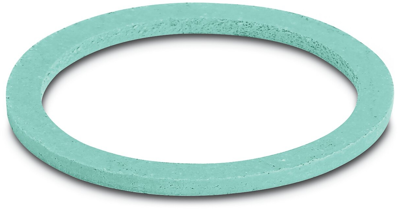

Flat seal WP-FS HF IP68 M32

Flat seal, height: 2.2 mm, diameter: 44 mm, color: green.

The technical characteristics of 3241178 from Phoenix Contact at glance

  • Inner diameter : 32 mm
  • Outer diameter : 44 mm
  • Article description : WP-FS HF IP68 M32
  • Material : Centellen
  • Suitable for thread size (PG) : No
  • Suitable for thread size (NPT) : No
  • min. Thickness : 2.2 mm
  • Suitable for thread size (metric) : M32

Further links to Phoenix Contact 3241178

You can find more information about Phoenix Contact under the following links 3241178

Technical specifications
Colour green
Material centellen
Product type flat seal
Version M32
min. operating temperature -50 °C
Height 2.2 mm
Suitable for IP68
Width 44 mm
max. operating temperature 200 °C
Logistics
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
