3241173 | Phoenix Contact

Flat seal, M10, (W x H) 17 x 1.6 mm, centellen, green, for IP68, 3241173

Order No.: 61P2964
EAN: 4046356785792
MPN:
3241173
WP-FS HF IP68 M10
Series: WP-FS HF IP68
3241173 Phoenix Contact Cable Management Accessories
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

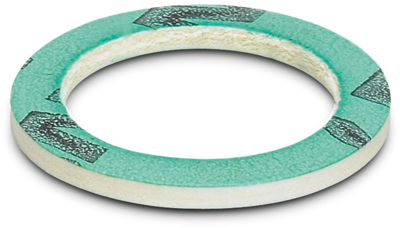

Flat seal WP-FS HF IP68 M10

Flat seal, height: 1.6 mm, diameter: 17 mm, color: green.

The technical characteristics of 3241173 from Phoenix Contact at glance

  • Material : Centellen
  • Article description : WP-FS HF IP68 M10
  • Outer diameter : 17 mm
  • Inner diameter : 10 mm
  • Suitable for thread size (metric) : M10
  • min. Thickness : 1.6 mm
  • Suitable for thread size (PG) : No
  • Suitable for thread size (NPT) : No

Further links to Phoenix Contact 3241173

You can find more information about Phoenix Contact under the following links 3241173

Technical specifications
Colour green
Material centellen
Product type flat seal
Version M10
min. operating temperature -50 °C
Height 1.6 mm
Suitable for IP68
Width 17 mm
max. operating temperature 200 °C
Logistics
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
