3241160 | Phoenix Contact
Flat seal, M12, (W x H) 20 x 1.6 mm, NBR, black, for IP68, 3241160
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

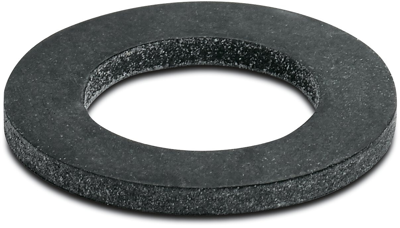

Flat seal WP-FS IP68 M12
Flat seal, height: 1.6 mm, diameter: 20 mm, color: black.
The technical characteristics of 3241160 from Phoenix Contact at glance
- Inner diameter : 12 mm
- Outer diameter : 20 mm
- Article description : WP-FS IP68 M12
- Material : Plastic
- Suitable for thread size (PG) : No
- Suitable for thread size (NPT) : No
- min. Thickness : 1.6 mm
- Suitable for thread size (metric) : M12
Further links to Phoenix Contact 3241160
You can find more information about Phoenix Contact under the following links 3241160
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Suitable for | IP68 | |
| Width | 20 mm | |
| Height | 1.6 mm | |
| Material | NBR | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -20 °C | |
| Version | M12 | |
| Product type | flat seal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 40169300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
