Cable management system, with closed swivel joint, (L x W x H) 218 x 68 x 140.5 mm, PC, gray, for rewiring, 3071400
Unit Price (€ / pc.)
51.6698 € *
Standard delivery time from the manufacturer is: 3 Weeks

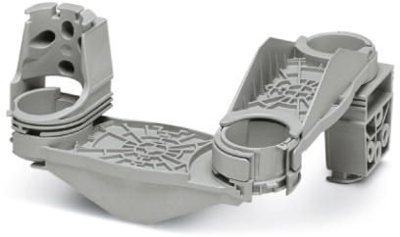

Cable routing system, 3071400, Phoenix Contact

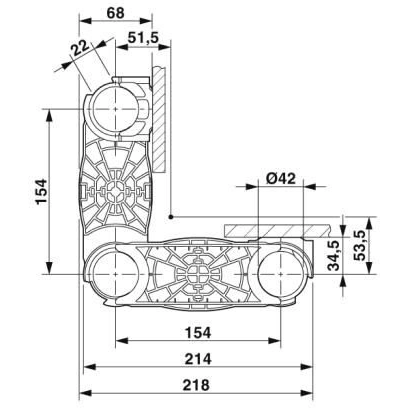

Cable routing system, with closed swivel joint, Length: 218 mm, Width: 68 mm, Height: 140.5 mm, Diameter: 42 mm, Color: gray
Features
- High-grade elastic and mechanically resilient plastic
- Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
- Integrated flanges with strain relief make assembly quick and easy
- Easily plan cable harnesses: the cable length is predefined through the swivel arm
- Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range
- Route pre-assembled cables and conductors easily, thanks to the patent-pending swivel joint
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with closed swivel joint | |
| max. operating temperature | 85 °C | |
| Colour | gray | |
| Width | 68 mm | |
| Suitable for | rewiring | |
| Height | 140.5 mm | |
| Product type | cable management system | |
| Material | PC | |
| min. operating temperature | 60 °C | |
| Length | 218 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 39259020 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
