3241216 | Phoenix Contact

Insulated pin cable lug, 1.5-2.5 mm², AWG 16 to 14, 1.9 mm, blue, 3241216

Order No.: 60P7271
EAN: 4046356826211
MPN:
3241216
C-PCEI 2,5/2
Series: C-PCEI

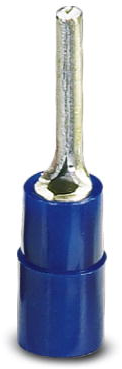

3241216 Phoenix Contact Cable Lugs Image 1
3241216 Phoenix Contact Cable Lugs Image 2
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available in 10 days: 5,750 pcs. - if ordered today
Total Price:
0.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.5593 €

Cable lug, 3241216, Phoenix Contact

Pin cable lug, blue, 1.5 - 2.5 mm², L1 = 12 mm, with copper sleeve incorporated, for insulation crimp

Features

  • "Easy Entry" for easy and reliable conductor entry
  • Halogen-free
  • Electrogalvanized
  • The mechanical load capacity of the connection is significantly increased by the additionally applied copper sleeve (insulation crimp)
Technical specifications
AWG cross-section AWG 16 to 14
Cable cross-section 1.5-2.5 mm²
max. operating temperature 105 °C
Colour blue
Isolated Yes
Material Insulation PA
Version pin cable lug
Pin diameter 1.9 mm
Material copper, tin-plated
Logistics
Customs tariff number 85369010
Country of origin TW
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
