3241214 | Phoenix Contact

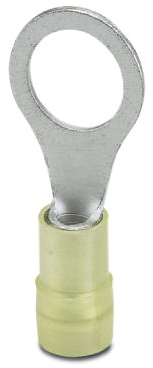

Insulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 10.5 mm, M10, yellow, 3241214
Unit Price (€ / pc.)
0.8806 € *
Available in 5 Days: 6,600 pcs. - if ordered today
Ring cable lug C-RC 50/M12 DIN
Ring cable lug, uninsulated, 50 mm², M12
The technical characteristics of 3240113 from Phoenix Contact at a glance
- Item description: C-RC 50/M12 DIN
- Product Type Name: Connector
- metric connection thread dimension: M12
Further links to Phoenix Contact 3240113
Under the following links you will find more information about Phoenix Contact 3240113
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 10.5 mm | |
| Colour | yellow | |
| Thread size | M10 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
