3241211 | Phoenix Contact
Insulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 5.3 mm, M5, yellow, 3241211
Unit Price (€ / pc.)
0.61 € *
Available in 5 Days: 6,996 pcs. - if ordered today

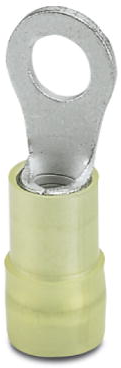

Ring cable lug C-RCEI 6/M5
Ring cable lug, yellow, 4 - 6 mm², M5, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241211 from Phoenix Contact at a glance
- Item description: C-RCEI 6/M5
- Insulation available: Yes
- Product compliant (following DIN): No
- Product Type Name: Connector
- Flange shape: Ring shape
- max. area of the nominal cross section: 6 mm²
- min. Nominal cross section: 4 mm²
- metric connection thread dimension: M5
Further links to Phoenix Contact 3241211
Under the following links you will find more information about Phoenix Contact 3241211
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 5.3 mm | |
| Colour | yellow | |
| Thread size | M5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
