3241210 | Phoenix Contact

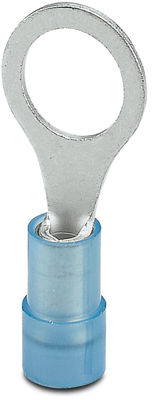

Insulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 8.4 mm, M8, blue, 3241210
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 8,300 pcs. - if ordered today
Ring cable lug C-RC 10/M8 DIN
Ring cable lug, uninsulated, 10 mm², M8
The technical characteristics of 3240091 from Phoenix Contact at a glance
- Item description: C-RC 10/M8 DIN
- Product Type Name: Connector
- metric connection thread dimension: M8
Further links to Phoenix Contact 3240091
Under the following links you will find more information about Phoenix Contact 3240091
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 8.4 mm | |
| Colour | blue | |
| Thread size | M8 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.5-2.5 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
