3241204 | Phoenix Contact

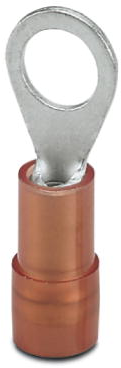

Insulated ring cable lug, 0.5-1.5 mm², AWG 20 to 16, 5.3 mm, M5, red, 3241204

Order No.: 60P7347
EAN: 4046356826099
MPN:
3241204
C-RCEI 1,5/M5
Series: C-RCEI
3241204 Phoenix Contact Cable Lugs
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.5593 €

Ring cable lug C-RCEI 1,5/M5

Ring cable lug, red, 0,5 - 1,5 mm², M5, with inserted copper sleeve, for insulation crimping

The technical characteristics of 3241204 from Phoenix Contact at a glance

  • Flange shape: Ring shape
  • Product Type Name: Connector
  • Product compliant (following DIN): No
  • Insulation available: Yes
  • Item description: C-RCEI 1,5/M5
  • metric connection thread dimension: M5
  • min. Nominal cross section: 0.5 mm²
  • max. area of the nominal cross section: 1.5 mm²

Further links to Phoenix Contact 3241204

Under the following links you will find more information about Phoenix Contact 3241204

Technical specifications
Hole diameter 5.3 mm
Material Insulation PA
Colour red
Thread size M5
Cable cross-section 0.5-1.5 mm²
max. operating temperature 105 °C
Isolated Yes
Version ring cable lug
Material copper, tin-plated
AWG cross-section AWG 20 to 16
Logistics
Customs tariff number 85369010
Country of origin TW
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
