3241202 | Phoenix Contact

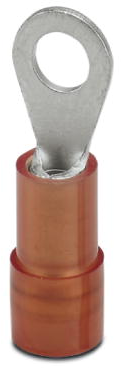

Insulated ring cable lug, 0.5-1.5 mm², AWG 20 to 16, 3.7 mm, M3.5, red, 3241202
Unit Price (€ / pc.)
0.47 € *
Available in 5 Days: 2,200 pcs. - if ordered today
Ring cable lug C-RC 2,5/M4 DIN
Ring cable lug, uninsulated, 1,1 - 2,5 mm², M4
The technical characteristics of 3240078 from Phoenix Contact at a glance
- Product Type Name: Connector
- Item description: C-RC 2,5/M4 DIN
- metric connection thread dimension: M4
Further links to Phoenix Contact 3240078
Under the following links you will find more information about Phoenix Contact 3240078
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 16 | |
| Hole diameter | 3.7 mm | |
| Colour | red | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.5-1.5 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
