3240533 | Phoenix Contact

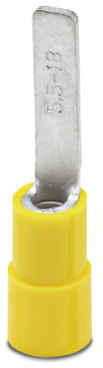

Insulated pin cable lug, 4.0-6.0 mm², AWG 12 to 10, 4.5 mm, yellow, 3240533
Unit Price (€ / pc.)
0.4284 € *
Available in 10 days: 1,900 pcs. - if ordered today
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3808 €
50 pcs.
0.3332 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug C-FCI 2,5/M3
Fork cable lug, blue, 1,5 - 2,5 mm², M3
The technical characteristics of 3240037 from Phoenix Contact at a glance
- Item description: C-FCI 2,5/M3
- Flange shape: Gabelform
- Insulation available: Yes
- Product Type Name: Connector
- Product compliant (following DIN): No
- metric connection thread dimension: M3
- min. Nominal cross section: 1.5 mm²
- max. area of the nominal cross section: 2.5 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper | |
| Colour | yellow | |
| Version | pin cable lug | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Cable cross-section | 4.0-6.0 mm² | |
| AWG cross-section | AWG 12 to 10 | |
| Pin diameter | 4.5 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
