3240039 | Phoenix Contact

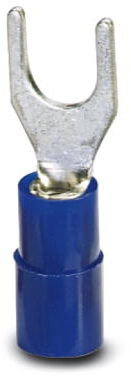

Insulated forked cable lug, 1.5-2.5 mm², AWG 16 to 14, M4, blue, 3240039
Unit Price (€ / pc.)
0.2654 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
26.54 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2654 €
200 pcs.
0.2392 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug C-FCI 2,5/M4
Fork cable lug, blue, 1,5 - 2,5 mm², M4
The technical characteristics of 3240039 from Phoenix Contact at a glance
- Item description: C-FCI 2,5/M4
- Flange shape: Gabelform
- Insulation available: Yes
- Product Type Name: Connector
- Product compliant (following DIN): No
- metric connection thread dimension: M4
- min. Nominal cross section: 1.5 mm²
- max. area of the nominal cross section: 2.5 mm²
Further links to Phoenix Contact 3240039
Under the following links you will find more information about Phoenix Contact 3240039
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.5-2.5 mm² | |
| Colour | blue | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| AWG cross-section | AWG 16 to 14 | |
| Isolated | Yes | |
| Version | forked cable lug | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
