3240031 | Phoenix Contact

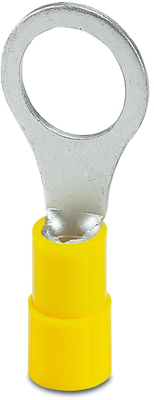

Insulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 10.5 mm, M10, yellow, 3240031
Unit Price (€ / pc.)
0.6188 € *
Available in 10 days: 5,100 pcs. - if ordered today
Ring cable lug C-RCEI 6/M10
Ring cable lug, yellow, 4 - 6 mm², M10, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241214 from Phoenix Contact at a glance
- Flange shape: Ring shape
- Product Type Name: Connector
- Product compliant (following DIN): No
- Insulation available: Yes
- Item description: C-RCEI 6/M10
- metric connection thread dimension: M10
- min. Nominal cross section: 4 mm²
- max. area of the nominal cross section: 6 mm²
Further links to Phoenix Contact 3241214
Under the following links you will find more information about Phoenix Contact 3241214
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M10 | |
| Version | ring cable lug | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material Insulation | PA | |
| Colour | yellow | |
| Hole diameter | 10.5 mm | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 12 to 10 | |
| max. operating temperature | 105 °C | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
