3240027 | Phoenix Contact

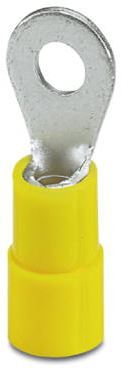

Insulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 4.3 mm, M4, yellow, 3240027
Unit Price (€ / pc.)
0.4284 € *
Available: 47 pcs.
Available in 5 Days: 86,050 pcs. - if ordered today
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug C-FCI 6/M8
Fork cable lug, yellow, 4 - 6 mm², M8
The technical characteristics of 3240045 from Phoenix Contact at a glance
- Item description: C-FCI 6/M8
- Flange shape: Gabelform
- Insulation available: Yes
- Product Type Name: Connector
- Product compliant (following DIN): No
- metric connection thread dimension: M8
- min. Nominal cross section: 4 mm²
- max. area of the nominal cross section: 6 mm²
Further links to Phoenix Contact 3240045
Under the following links you will find more information about Phoenix Contact 3240045
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Material | copper, tin-plated | |
| Isolated | Yes | |
| Thread size | M4 | |
| Hole diameter | 4.3 mm | |
| Version | ring cable lug | |
| Cable cross-section | 4.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
