3240026 | Phoenix Contact
Insulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 8.5 mm, M8, blue, 3240026
Unit Price (€ / pc.)
0.6069 € *
Available: 41 pcs.
Available in 5 Days: 23,170 pcs. - if ordered today
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
50 pcs.
0.4998 €
100 pcs.
0.4165 €
500 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

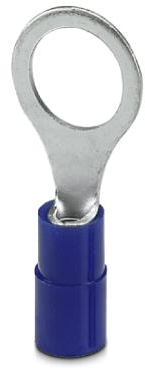

Ring cable lug, 3240026, Phoenix Contact
Ring cable lug, blue, 1.5 - 2.5 mm², M8
Features
- The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
- The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Material | copper, tin-plated | |
| Isolated | Yes | |
| Thread size | M8 | |
| Hole diameter | 8.5 mm | |
| Version | ring cable lug | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
