3240023 | Phoenix Contact

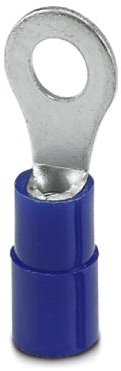

Insulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 4.3 mm, M4, blue, 3240023
Unit Price (€ / pc.)
0.3213 € *
Available: 31 pcs.
Available in 10 days: 70,100 pcs.
Leadtime: 2 Weeks **
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
25 pcs.
0.3213 €
50 pcs.
0.3023 €
100 pcs.
0.2618 €
500 pcs.
0.2428 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug C-FCI 2,5/M3,5
Fork cable lug, blue, 1,5 - 2,5 mm², M3,5
The technical characteristics of 3240038 from Phoenix Contact at a glance
- Product compliant (following DIN): No
- Product Type Name: Connector
- Insulation available: Yes
- Flange shape: Gabelform
- Item description: C-FCI 2,5/M3,5
- max. area of the nominal cross section: 2.5 mm²
- min. Nominal cross section: 1.5 mm²
- metric connection thread dimension: M3,5
Further links to Phoenix Contact 3240038
Under the following links you will find more information about Phoenix Contact 3240038
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 16 bis 14 | |
| Colour | blau | |
| Thread size | M4 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1,5-2,5 mm² | |
| Hole diameter | 4.3 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
