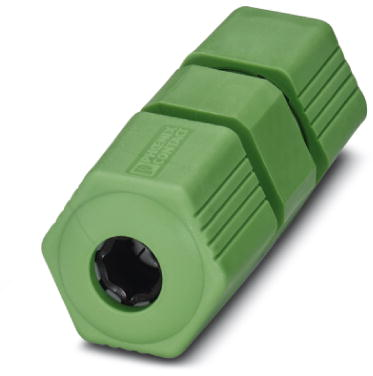

1670248 | Phoenix Contact
Cable connector, 3 pole, straight, 0.75-1.5 mm², cable Ø 7 to 9 mm, IP65/IP67, 1670248
Unit Price (€ / pc.)
12.8401 € *
Available in 5 Days: 758 pcs. - if ordered today
Conductor connector, 1670248, Phoenix Contact
Conductor connector to connect circular conductors.
Features
- Robust throughout: housing with IP65/IP67 protection for a wide range of applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cable connector | |
| Pin number | 3 pole | |
| Design | straight | |
| Connection | QUICKON | |
| Cable cross-section | 0.75-1.5 mm² | |
| Cable diameter | 7 to 9 mm | |
| Colour | green | |
| Degree of protection (IP) | IP65/IP67 | |
| Rated voltage IEC | 500 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 17.5 A | |
| Rated current UL/CSA | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
