1274812 | Phoenix Contact

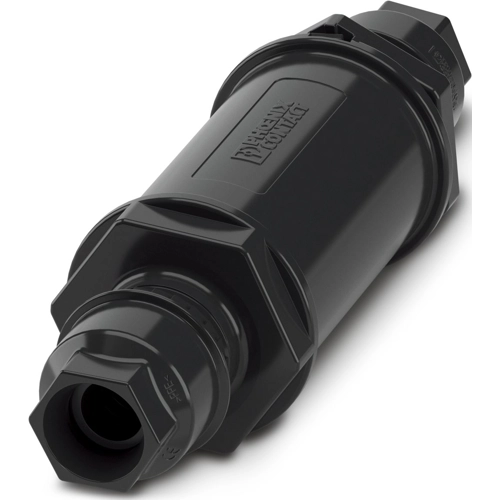

Cable connector, 5 pole, straight, 0.75-4.0 mm², cable Ø 9.5 to 12.5 mm, IP67, 1274812
Unit Price (€ / pc.)
23.5128 € *
Standard delivery time from the manufacturer is: On Request
Conductor connector, 1274812, Phoenix Contact
Conductor connector, Range of articles: PRC 35, design: Straight, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 0.75 mm², max. conductor cross section: 4 mm², rated voltage: 1000, rated current: 32 A, Connection method: Screw connection, min. cable diameter: 9.5 mm, max. cable diameter: 12.5 mm.
Features
- Easily extend and repair lines and cables
- Suitable for use outdoors, thanks to UV- and saltwater-resistant plastics
- Patented closure technology prevents the housing from being opened accidentally
- Locking mechanism can be unlocked manually or using a tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Cable cross-section | 0.75-4.0 mm² | |
| Design | straight | |
| Rated voltage IEC | 1000 V | |
| Version | cable connector | |
| Pin number | 5 pole | |
| Rated current IEC | 32 A | |
| Cable diameter | 9.5 to 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
